When to Repeat, What to Repeat?

EVALUATION SHEET

CC VIEW

MAMMOGRAPHY IMAGE EVALUATION SHEET

MLO VIEW

SUMMARY

It is sometimes difficult to assess our images quickly and efficiently without forgetting some important area of error. Here is a quick easy checklist to assess your images for repeat.

QC CHARTING: CHARTS, LOGS AND LISTS; OH MY!

We spend much of our time charting parameters for quality control. We get the charts from many sites. We copy them out of the Accreditation manual, the film company’s handouts, seminar notes, the physicist’s reports; we get them virtually everywhere.

They are all excellent but not always customized exactly for our facilities needs. I was always adding a line, a note, a parameter, a category or a factor. I started to develop my own charts that more closely reflected our needs. With today’s easy access to document manipulation this is easy and makes life simpler in the morning when most of the QC is accomplished with patients pacing in the waiting room, tapping their collective toes and breathing down your neck.

Here are a few of my custom charts. Copy them if you want, peruse them for ideas for developing your own documents or just look, change, imitate and employ.

THE CHARTS:

1. Trend charts
2. Fixer retention log
3. Daily optical density
4. Compression test
5. Processor temperature log
6. Recall/retake analysis
7. Retake image sheet
8. Screen speed uniformity
9. Film/screen contact
10. Darkroom safelight fog test
11. Darkroom white-light fog test
12. Year-at-a-Glance

FIXER RETENTION HYPO-TEST

SUMMARY:
We are the thin line between perfection and adequacy. It is up to us how to best implement the many tests, checks and balances that make up a good Quality Control Program. Our facilities are unique and our charts and logs should reflect that. Use these as a guide and be creative. Good luck and don’t be shy about changes that improve the effectiveness of your work.

ARE WE PERFECT YET?: Assessing our Images: The MLO

We are responsible for assessing patient images not only for diagnostic adequacy but also for jurisdictional accreditation of our departments and for certification of our own licenses. This becomes an awesome obligation and often a source of great stress for the mammographic technologist. Evaluation of patient images follows certain established criteria. Assessment simply follows these guidelines.

WHAT MUST WE SEE IN THE MLO PROJECTION?

1. PECTORALIS CONVEX & BELOW NIPPLE LEVEL
2. AXILLARY TAIL
3. NIPPLE IN PROFILE
4. IMF OPEN AND ADEQUATELY VISUALIZED
5. PNL WITHIN 1CM OF CC
6. TISSUE SPREAD EVENLY AND ADEQUATELY SEPARATED

HOW DO WE MEASURE THE PECTORALIS?

We draw a line parallel to the Cooper’s ligaments from the nipple base to the pectoral shadow or the film edge which ever comes first; where the PNL intersects with the Pectoral shadow shows us if we are above the nipple, at the nipple or below the nipple.

WHEN IS THE PECTORAL SHADOW CONVEX?

To calculate the convex nature of the pectoral shadow, hold a straight edge from the top outer aspect of the pectoral to the bottom corner. If there is muscle showing in front of the ruler, the shadow is convex. If there is breast tissue or fat showing behind the ruler the muscle is concave.

WHEN IS PECTORAL MUSCLE CONCAVE?

WHEN IS THE RETRO-MAMMARY SPACE SEEN?

If the retro mammary space is not demonstrated behind the parenchyma on the MLO view we have not seen all the breast tissue that is at risk. To avoid missing breast cancers we must understand when the tissue is adequately seen and when it is not and extra images are called for.

WHEN IS THE RETRO-MAMMARY SPACE NOT SEEN?

WHEN IS THE AXILLARY TAIL FULLY DEMONSTATED?

To ensure the axillary tail is adequately seen on the MLO projection, the tail-of-Spence should be clearly visible at the superior border of the image. There should be a line of retro mammary fat above the superior parenchymal edge. A gently curving edge of tissue should be visible leading up toward the axilla.

WHEN IS THE AXILLARY TAIL NOT FULLY DEMONSTATED?

WHEN IS THE BREAST ‘UP & OUT’?

If the breast is perfectly up and out in the oblique view the pattern of the cooper’s ligaments should be perpendicular to the chest wall. If the cooper’s ligaments are at least straight from the nipple base back to the chest wall, the up and out position of the breast is adequate.

Breast In Perfect ‘Up & Out’ Position:

Breast Adequately ‘Up & Out’:

WHEN IS THE BREAST NOT ‘UP & OUT’?

Breast NOT ‘Up & Out’:

Breast In ‘Camel nose’ NOT ‘Up & Out’:

WHEN IS THE IMF OPEN AND ADEQUATELY VISUALIZED?

This is the most common error made by technologists when assessing their images for accreditation or certification submission. Many of us misinterpret a large fold of abdomen imaged at the back of the breast as inframammary fold. A bright light will help determine what we are observing at the inferior aspect of our images.

The true IMF will be grey, like fat and skin. It will appear as a gentle curve beyond and below the parenchyma. Again, a hot light will tell us for sure that we are seeing IMF and not a big fold or wrinkle surrounded by air.

IMF Open and Clearly Demonstrated

IMF Open and Seen Just Above a fold of Abdomen BELOW the Level of the Breast

WHEN IS THE IMF NOT OPEN AND ADEQUATELY VISUALIZED?

Summary:

Our mission as mammographers gets more complicated every year. We are called upon to assess patients, images, equipment and services. Breast imaging is complex but not beyond skills. Everything follows certain recognized standards, adhere to these and things will not seem so demanding.

ARE WE PERFECT YET? Assessing our Images: The CC

We are responsible for assessing patient images not only for diagnostic adequacy but also for jurisdictional accreditation of our departments and for certification of our own licenses. This becomes an awesome obligation and often a source of great stress for the mammographic technologist. Evaluation of patient images follows certain established criteria. Assessment simply follows these guidelines.

WHAT MUST WE SEE IN THE CC PROJECTION?

1. MEDIAL NUB
2. NIPPLE IN PROFILE
3. TAIL OF SPENCE
4. PECTORAL SHADOW
5. TISSUE SPREAD ADEQUATELY
6. PNL WITHIN 1CM OF MLO

WHEN DO WE SEE THE MEDIAL CROSS-OVER?

WHEN DON'T WE SEE THE MEDIAL CROSS-OVER?

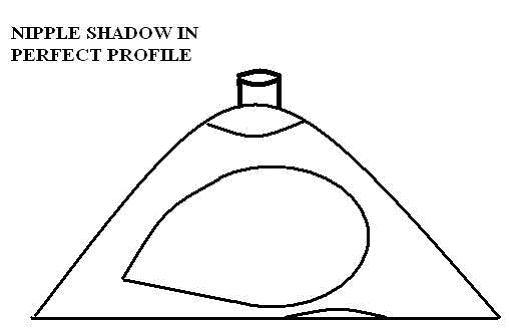

WHEN DO WE SEE THE NIPPLE IN PROFILE?

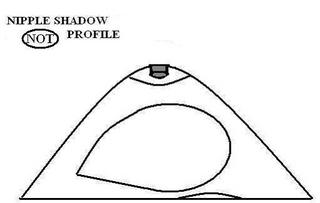

WHEN DON'T WE SEE THE NIPPLE IN PROFILE?

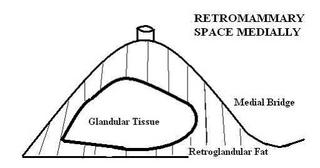

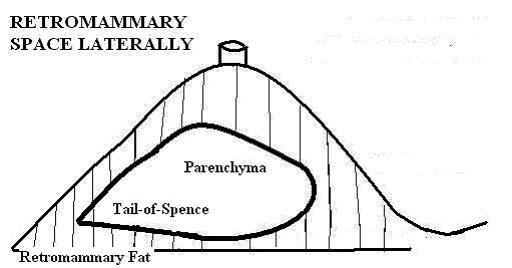

WHEN DO WE SEE RETRO MAMMARY SPACE?

WHEN DON’T WE SEE RETRO MAMMARY SPACE?

WHEN DO WE SEE PECTORAL SHADOW?

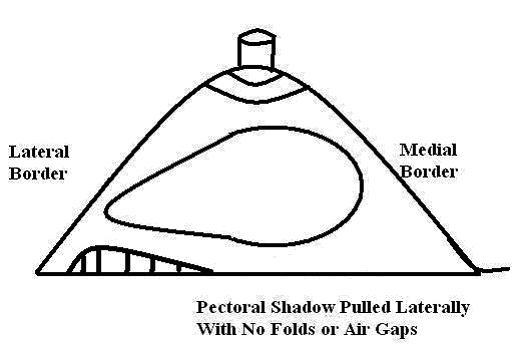

Perfectly Demonstrated Pectoralis

Adequately Demonstrated Pectoralis

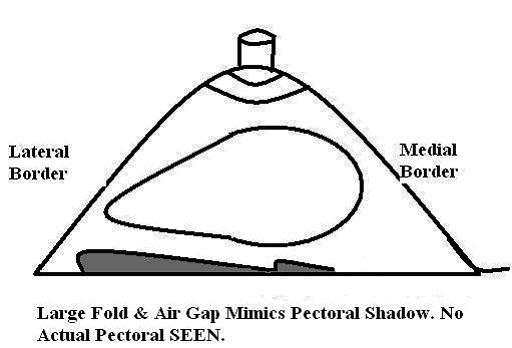

WHEN DON'T WE SEE PECTORAL SHADOW?

MEASURING THE POSTERIOR NIPPLE LINE

The PNL on the CC projection is ALWAYS measured from the base of the nipple directly back to the film edge. The measurement is taken this way irregardless of pectoralis shadow or improper positioning.

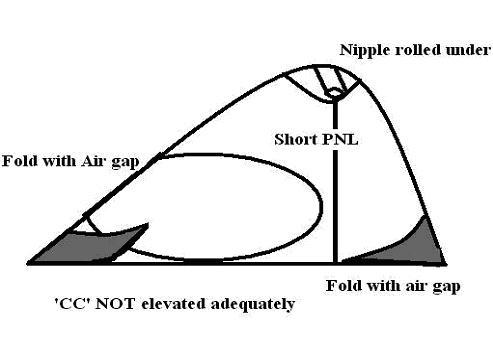

IS THE BREAST ADEQUATELY ELEVATED?

Summary:
Our mission as mammographers gets more complicated every year. We are called upon to assess patients, images, equipment and services. Breast imaging is complex but not beyond skills. Everything follows certain recognized standards, adhere to these and things will not seem so demanding.
